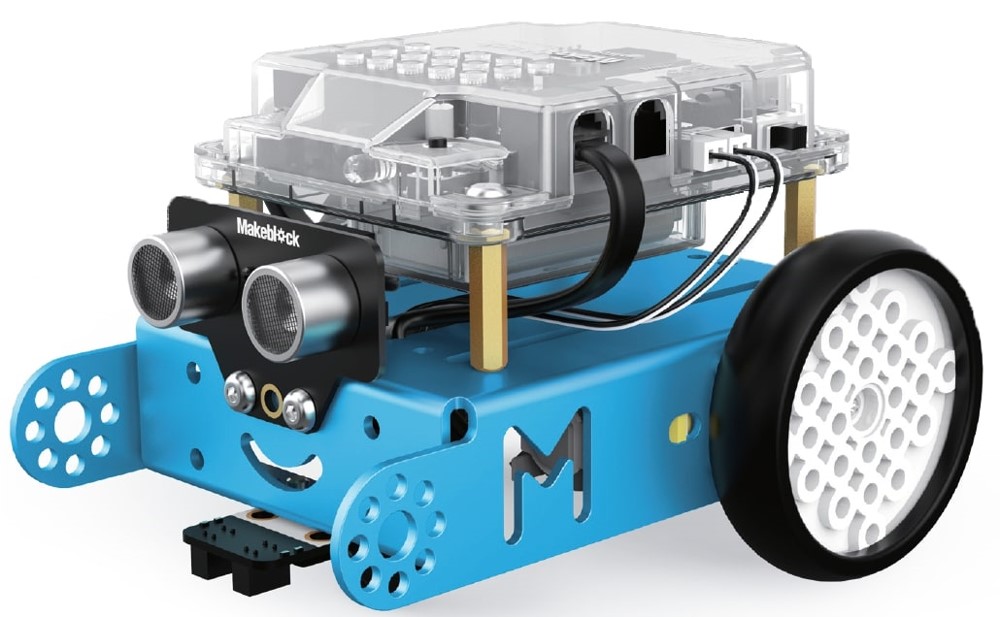

m-bot

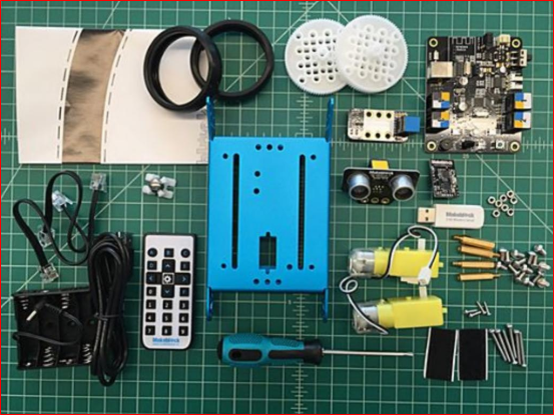

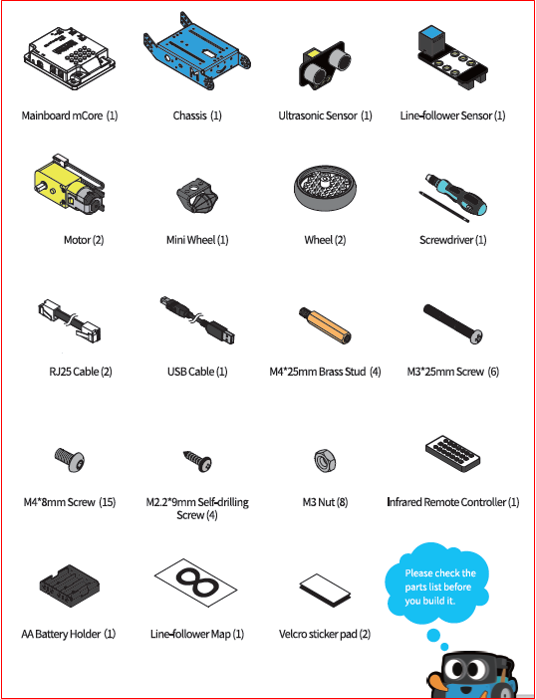

The parts look like this

m-bot-pats
m-bot-pats

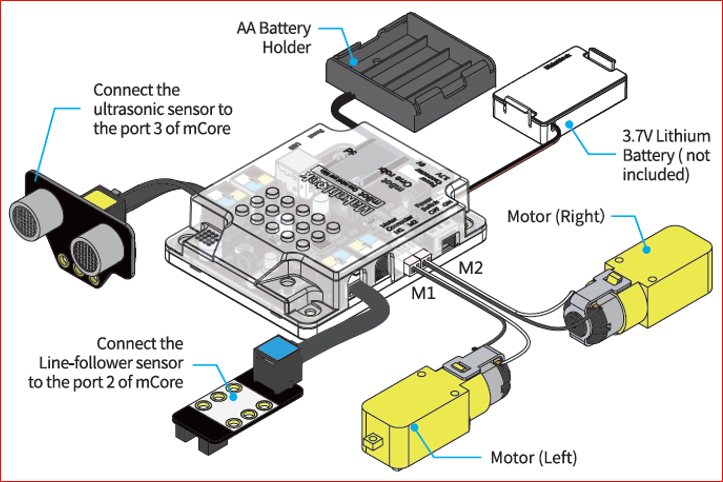

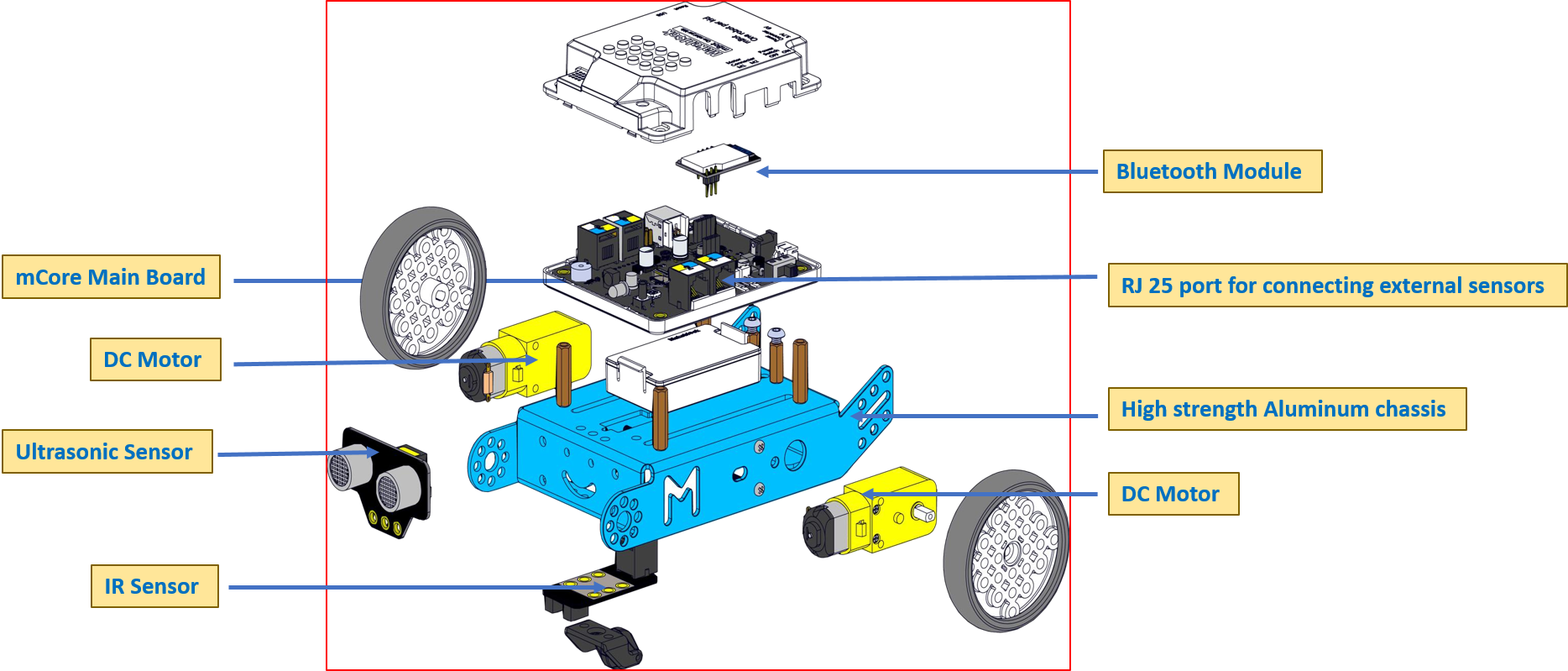

Main Parts of mBot

Main Parts of mBot

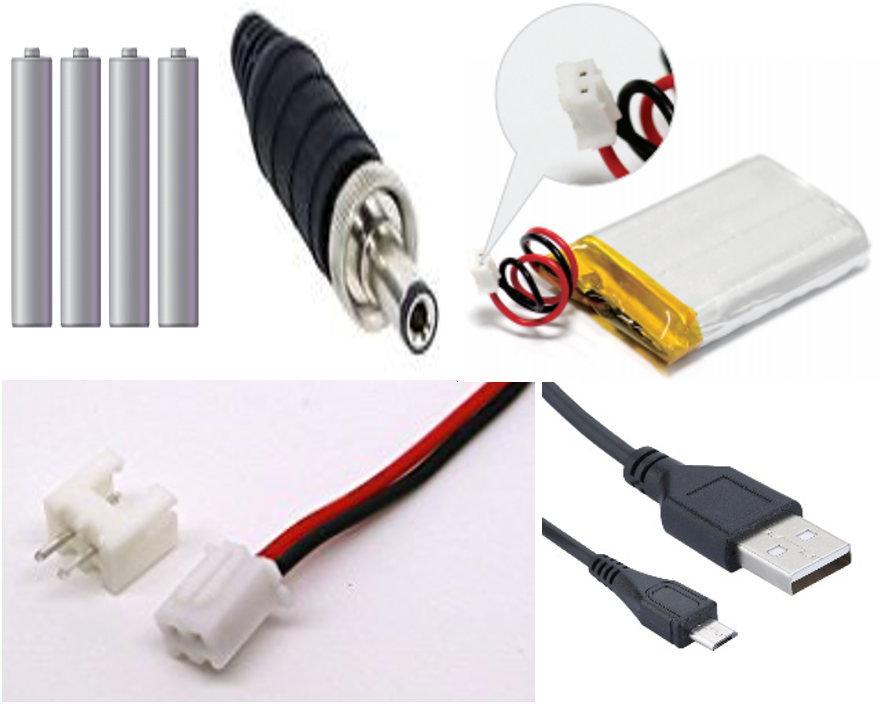

mBot’s Powering Options

âš¡ mBot Voltage Range: 3.7V to 6.0V DC âš¡
🔋 Powering Option 1 – 4 x AA batteries in a battery holder with a 2.5mm Barrel plug that connects to mBot.
🔋 Powering Option 2 – 3.7 V Lithium battery with a standard 2.0 interface that connects to mBot. It supports onboard USB charging.
💻 Powering Option 3 – mBot can also be powered from a PC/laptop using a standard USB cable.
option

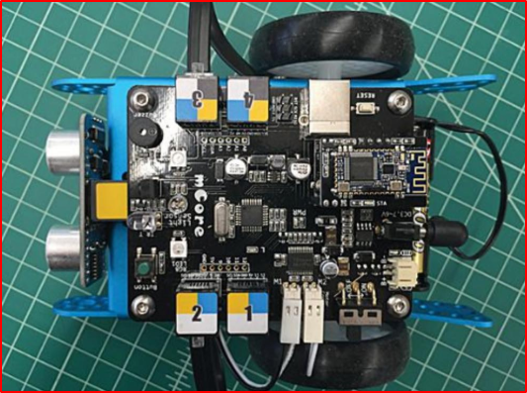

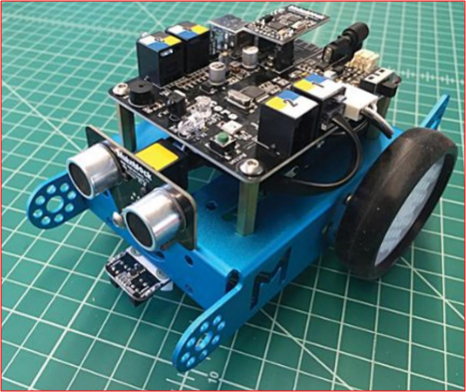

Your mBot should look like this

m-bot-like-this
m-bot-like-this
m-bot-like-this

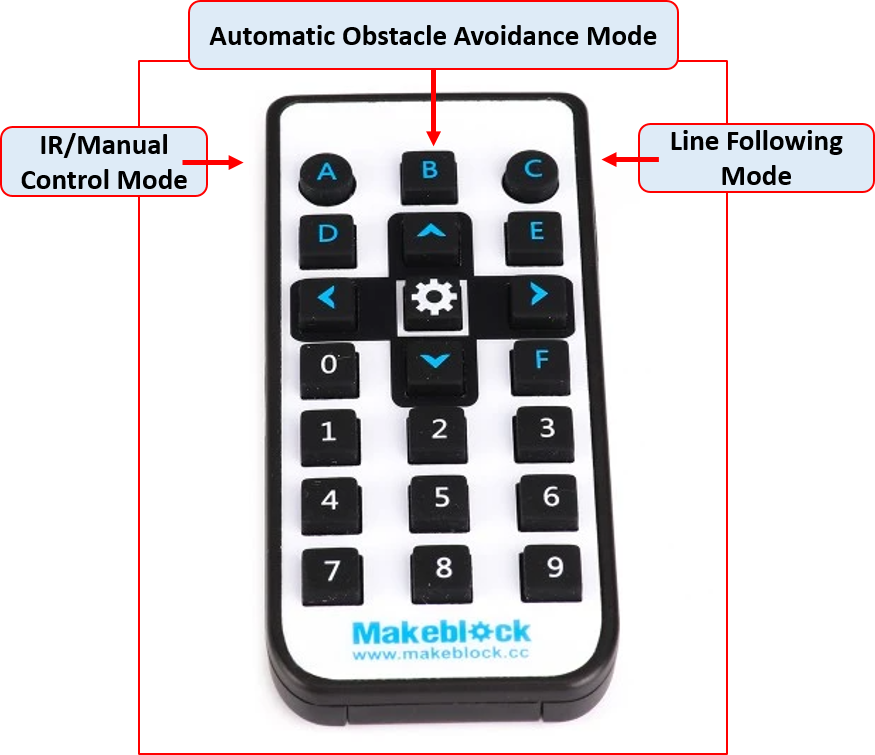

mBot has three modes of operation:

  • IR/Manual - Button A
  • Obstacle Avoidance - Button B
  • Line Following - Button C

IR/Manual in turn has two modes:

  • The first is IR Control Mode. This involves coding, which we shall learn later.
  • The second is Manual Mode, allowing you to operate mBot manually without coding.

Having assembled our mBot, this mode is the best way to try it out and get familiar with it.

We shall learn the Manual Mode in this chapter.

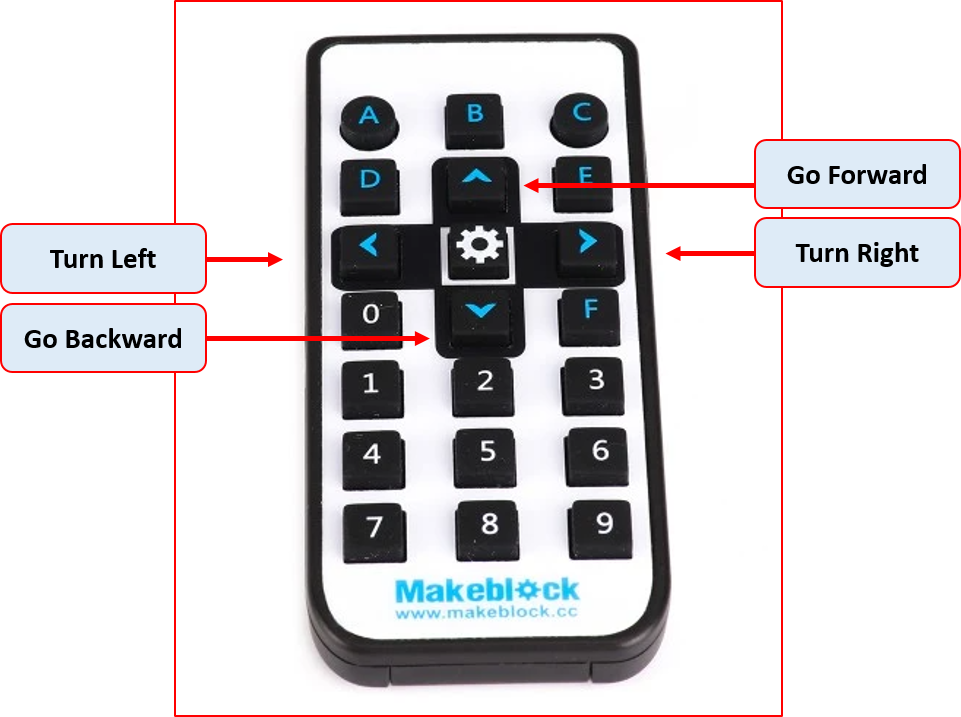

Manual Mode - Controlling Movements of mBot

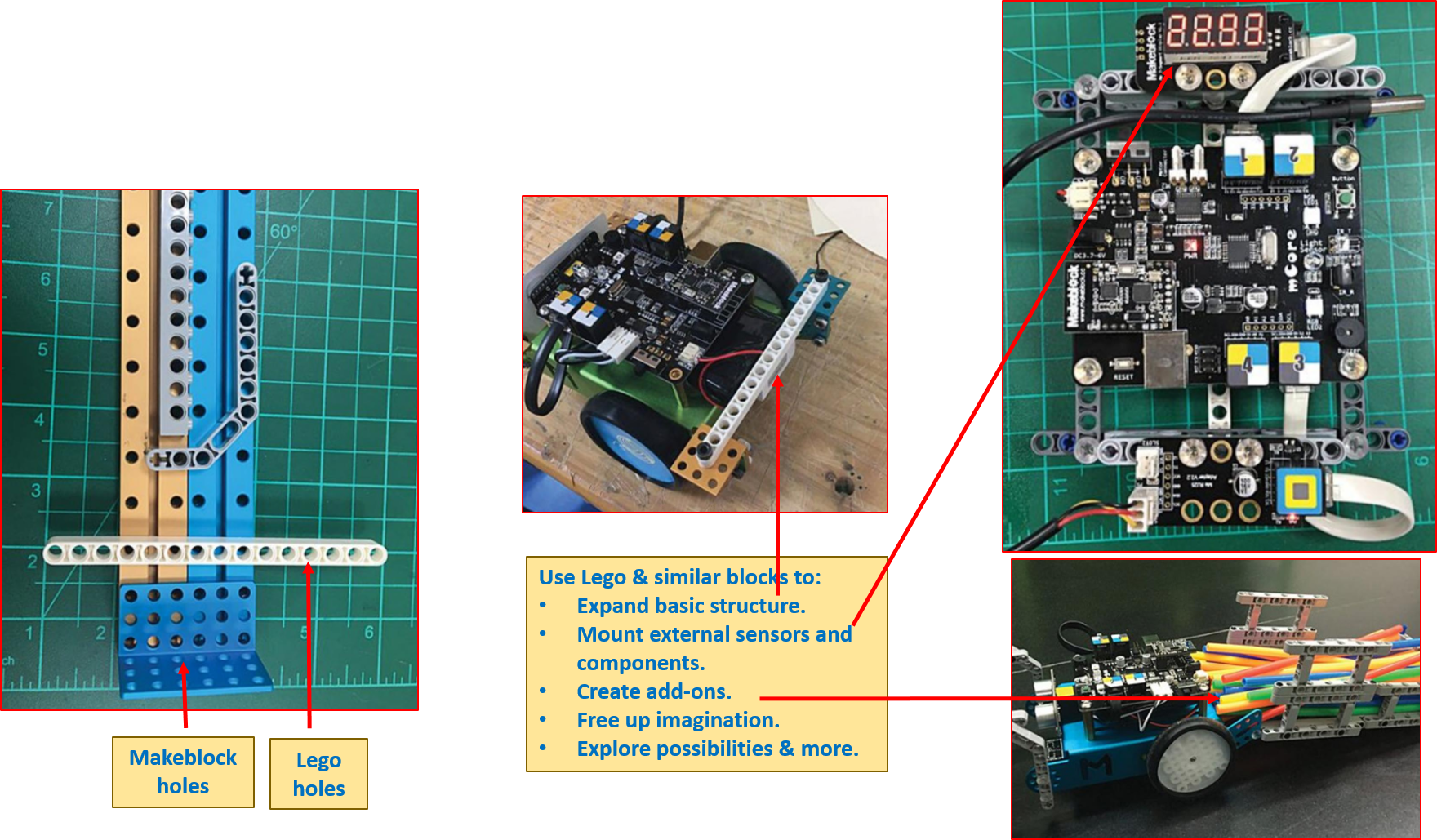

mBot is compatible with your Lego blocks
